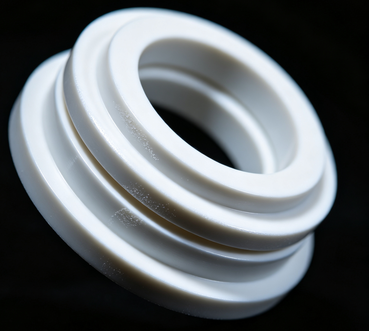

AIN Ceramic Ring Aluminum Nitride Ceramic Ring

Aluminum Nitride Ceramic Ring is a high-performance advanced ceramic component manufactured from high-purity aluminum nitride ceramic. With a purity of over 99%, density of ≥3.30 g/cm³, Vickers hardness of HV0.5≥1200, bending strength of ≥350 MPa, and thermal conductivity of 170–200 W/(m·K), it is designed for demanding applications requiring excellent wear resistance, mechanical strength, thermal conductivity, and dimensional stability.

Aluminum nitride ceramic combines high thermal conductivity with excellent electrical insulation, making it different from many conventional wear-resistant ceramic materials. Its low thermal expansion and good thermal stability allow the material to maintain reliable performance under temperature changes and elevated-temperature operating conditions.

The high hardness and bending strength of the material make AlN ceramic rings suitable for mechanical contact and wear-resistant applications. They can be used as mechanical seal rings, bearing components, and other precision ceramic parts where resistance to friction, dimensional stability, and long-term service performance are required.

In addition, the excellent thermal conductivity of aluminum nitride makes it particularly suitable for semiconductor substrates and packaging materials. Customized AlN rings and other ceramic components can be manufactured according to customer drawings, dimensions, tolerances, surface finish requirements, and application conditions.

High Thermal Conductivity (AIN) Ceramic Aluminum Nitride Ceramic Ring

Technical Specifications

Property	Specification
Product Name	Aluminum Nitride Wear-Resistant Ring
Material	Aluminum Nitride (AlN) Ceramic
AlN Purity	>99%
Density	≥3.30 g/cm³
Vickers Hardness	HV0.5 ≥1200
Bending Strength	≥350 MPa
Thermal Conductivity	170–200 W/(m·K)
Electrical Insulation	Excellent
Wear Resistance	Excellent
Thermal Stability	Excellent
Thermal Expansion	Low
Surface Finish	Precision Grinding / Polishing Available
Inner Diameter	Customizable
Outer Diameter	Customizable
Thickness	Customizable
Dimensional Tolerance	Customizable
Manufacturing Process	Ceramic Forming, Sintering, Precision Machining
Customization	Available According to Drawings

(AIN) Ceramic Aluminum Nitride Ceramic Ring

Product Features

1. High-Purity Aluminum Nitride Material

The Aluminum Nitride Ceramic Ring is manufactured using aluminum nitride with a purity of over 99%, providing consistent material properties and reliable performance. High-purity AlN is particularly suitable for semiconductor, electronic, precision mechanical, and high-temperature applications where material quality is important.

2. Excellent Wear Resistance

With a Vickers hardness of HV0.5≥1200, the aluminum nitride ceramic provides strong resistance to surface wear and mechanical friction. This makes it suitable for mechanical seal rings, bearing components, and other parts exposed to repeated contact during operation.

3. High Thermal Conductivity

The thermal conductivity of 170–200 W/(m·K) allows efficient heat transfer through the ceramic component. This property makes AlN especially valuable for semiconductor substrates, electronic packaging, and other applications where heat dissipation is a critical requirement.

4. High Mechanical Strength

With a bending strength of ≥350 MPa, the Aluminum Nitride Ceramic Ring can withstand considerable mechanical stress when properly designed for the application. The combination of high hardness and mechanical strength provides reliable performance in demanding precision components.

5. Suitable for High-Temperature Applications

Aluminum nitride has excellent thermal stability and can maintain reliable performance under elevated temperatures. It is suitable for high-temperature structural components and industrial systems where thermal performance, dimensional stability, and electrical insulation are required simultaneously.

Applications of High Thermal Conductivity (AIN) Ceramic Aluminum Nitride Ceramic Ring

Applications

1. Semiconductor Substrates and Packaging Materials

Aluminum nitride is widely used in semiconductor and electronic applications because of its high thermal conductivity and excellent electrical insulation. AlN ceramic components can help transfer heat efficiently while maintaining electrical isolation, making the material suitable for semiconductor substrates and packaging structures.

2. High-Temperature Structural Components

Aluminum Nitride Ceramic Rings can be used in high-temperature structural applications where conventional materials may experience thermal deformation or performance degradation. Its high thermal conductivity and thermal stability make it suitable for specialized industrial equipment operating under elevated temperatures.

3. Mechanical Seal Rings

Aluminum nitride wear-resistant rings can be used as mechanical seal components where hardness, wear resistance, dimensional stability, and thermal performance are required. Customized dimensions and precision-machined surfaces can be provided according to sealing equipment requirements.

4. Bearing Components

AlN ceramic can be used for selected bearing components and precision mechanical parts requiring high hardness and wear resistance. Its ceramic structure also provides electrical insulation, which can be beneficial in specialized mechanical and electrical equipment.

5. Precision Industrial Ceramic Components

Aluminum Nitride Ceramic Rings can be manufactured for precision machinery and industrial equipment requiring stable dimensions, high mechanical strength, and resistance to wear. Different diameters, thicknesses, tolerances, and surface finishes can be customized according to equipment specifications.

6. Thermal Management and Electronic Equipment

The high thermal conductivity of 170–200 W/(m·K) makes AlN ceramic suitable for thermal management components in electronic and industrial equipment. It can provide efficient heat dissipation while retaining the electrical insulation characteristics required in many electronic applications.

JianXun WAREHOUSE

Company Profile

Luoyang JianXun Tech Co., Ltd. is a professional supplier of advanced ceramic materials and industrial ceramic components, providing high-purity aluminum nitride, alumina, and other high-performance ceramic products for global industrial customers. We support customized ceramic components according to customer drawings, dimensions, material requirements, and application conditions, with a focus on consistent material quality and reliable product performance.

Payment

T/T, L/C, Western Union, Other payment methods can be discussed according to order requirements

Shipment

Express delivery, Air freight , Sea freight, Shipment method can be selected according to product quantity, destination, delivery time, and customer requirements.

Storage Condition

Store aluminum nitride wear-resistant rings in a clean, dry, and well-ventilated environment. Keep the products away from moisture, corrosive substances, and direct contamination. During storage and transportation, keep the rings in suitable protective packaging and avoid impact, dropping, or excessive mechanical pressure to prevent chipping, cracking, or surface damage.

FAQ about Aluminum Nitride Ceramic Ring

1. What is an aluminum nitride wear-resistant ring used for?

Aluminum nitride wear-resistant rings are used for applications requiring a combination of high hardness, wear resistance, thermal conductivity, and electrical insulation. Typical applications include mechanical seal rings, bearing components, high-temperature structural parts, semiconductor substrates, and electronic packaging-related components.

2. What are the main advantages of AlN ceramic compared with conventional ceramic materials?

The main advantage of aluminum nitride is its combination of high thermal conductivity and excellent electrical insulation, together with high hardness, mechanical strength, and thermal stability. This makes it particularly suitable for applications where both heat dissipation and mechanical performance are important.

3. Can you manufacture customized aluminum nitride rings according to drawings?

Yes. JianXun can provide customized AlN ceramic rings according to customer drawings or specifications. Inner diameter, outer diameter, thickness, dimensional tolerance, surface finish, and other structural requirements can be discussed according to the application.

4. What information should I provide to get a quotation?

For a precise quotation, buyers should provide the drawing or dimensions, required AlN purity, quantity, tolerances, surface finish, application, operating temperature, and working conditions. If available, providing the existing component or equipment model can also help with product evaluation.

5. Can I order samples before placing a bulk order?

Yes. Samples can be discussed for customized aluminum nitride wear-resistant rings. Sample requirements, MOQ, production time, and pricing depend on the dimensions, machining requirements, and quantity. Buyers can send their drawings or specifications for evaluation before placing a bulk order.
