Si3N4 Silicon Nitride Ceramic Rod

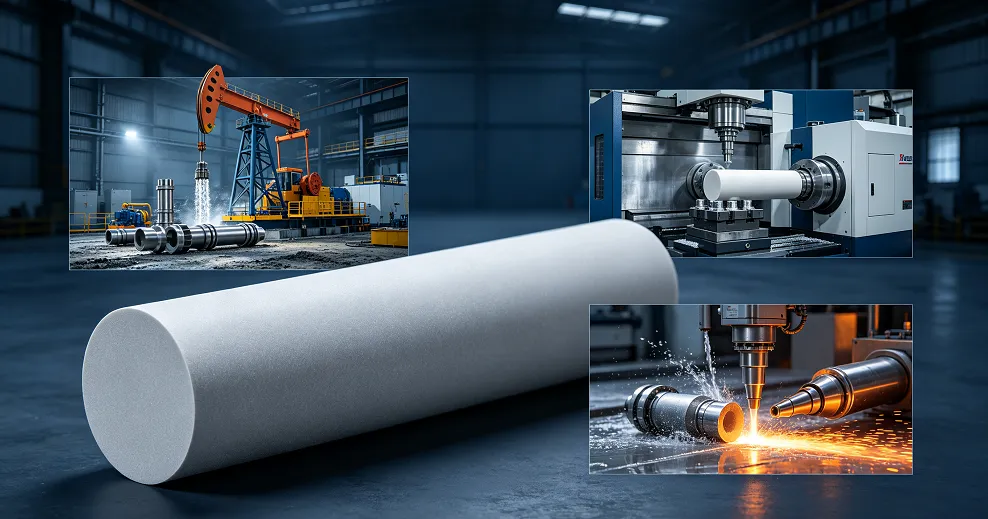

High Strength Silicon Nitride Ceramic Rod, also known as Silicon Nitride Ceramic Bar or Si3N4 Ceramic Rod, is an advanced engineering ceramic component manufactured from high-performance silicon nitride material. It is specially designed for applications requiring excellent mechanical strength, wear resistance, and high-temperature stability.

With a density of 3.2 g/cm³, Vickers hardness of HV0.5≥1500, bending strength of 600-1000 MPa, compressive strength of ≥2500 MPa, and maximum service temperature up to 1200°C, this Silicon Nitride Ceramic Rod provides outstanding durability and reliability under harsh operating conditions.

Compared with traditional metal components, Si3N4 Ceramic Rods offer excellent wear resistance, corrosion resistance, low thermal expansion, and high mechanical strength. They are widely used in high-temperature and high-pressure oilfield equipment, precision machining equipment, high-pressure water cutting systems, and advanced industrial machinery.

Luoyang JianXun Tech Co., Ltd. provides customized Silicon Nitride Ceramic Rods according to customer drawings, dimensions, and specific industrial requirements.

Technical Specifications

Item	Specification
Product Name	High Strength Silicon Nitride Ceramic Rod
Material	Silicon Nitride (Si₃N₄) Ceramic
Density	3.2 g/cm³
Vickers Hardness	HV0.5 ≥1500
Bending Strength	600-1000 MPa
Compressive Strength	≥2500 MPa
Maximum Service Temperature	1200°C
Wear Resistance	Excellent
Corrosion Resistance	Excellent
Thermal Stability	Excellent
Product Type	Ceramic Rod / Ceramic Bar
Machining	Precision Machining Available
Customization	Diameter, Length, Shape Available
Applications	Oilfield Equipment, Precision Machinery, High Pressure Water Cutting

Product Advantages of Silicon Nitride Ceramic Rod

1. Excellent Performance in High Pressure Oilfield Equipment

Silicon Nitride Ceramic Rod for oilfield equipment provides outstanding mechanical strength and wear resistance in high-pressure working environments. It can withstand demanding operating conditions while maintaining dimensional stability and long service life.

2. Superior Wear Resistance for Precision Machinery

The high hardness of Si3N4 Ceramic Rod makes it suitable for precision machining equipment requiring low wear and high accuracy. It helps reduce component replacement frequency and maintain stable machining performance.

3. High Strength Under Extreme Mechanical Loads

With bending strength of 600-1000 MPa and compressive strength of ≥2500 MPa, silicon nitride ceramic rods provide excellent load-bearing capability. They are suitable for applications involving high pressure, impact, and continuous operation.

4. Stable Performance at Elevated Temperatures

The High Temperature Silicon Nitride Ceramic Rod can operate at temperatures up to 1200°C while maintaining excellent mechanical properties. This makes it suitable for high-temperature industrial equipment.

5. Excellent Corrosion and Chemical Resistance

Silicon nitride ceramic has excellent resistance to corrosion and harsh environments. It performs reliably where conventional metal materials may experience degradation.

6. Precision Customized Manufacturing

Luoyang JianXun Tech Co., Ltd. provides customized silicon nitride ceramic rods with different dimensions, tolerances, and surface finishes to meet industrial requirements.

Typical Applications of Silicon Nitride Ceramic Rod

1. High Temperature and High Pressure Oilfield Equipment

Silicon Nitride Ceramic Rod for oilfield applications is used in high-pressure oil and gas extraction equipment requiring excellent strength and wear resistance. Its stable performance helps improve equipment reliability in harsh underground environments.

2. Precision Machining Equipment Components

Si3N4 ceramic rods are used in high-precision machinery as structural and wear-resistant components. Their high hardness and dimensional stability help maintain machining accuracy during long-term operation.

3. High Pressure Water Cutting Equipment

Silicon Nitride Ceramic Rod for high pressure water cutting systems provides excellent wear resistance and mechanical strength. It helps components withstand high-pressure water flow and abrasive working conditions.

4. Industrial Wear-Resistant Components

Silicon nitride ceramic rods are suitable for industrial components exposed to friction and mechanical stress. Their excellent wear resistance extends service life and reduces maintenance costs.

5. Advanced Engineering Equipment

Due to its combination of strength, hardness, and temperature resistance, Si3N4 ceramic rods are widely used in advanced machinery and special industrial applications.

Company Profile

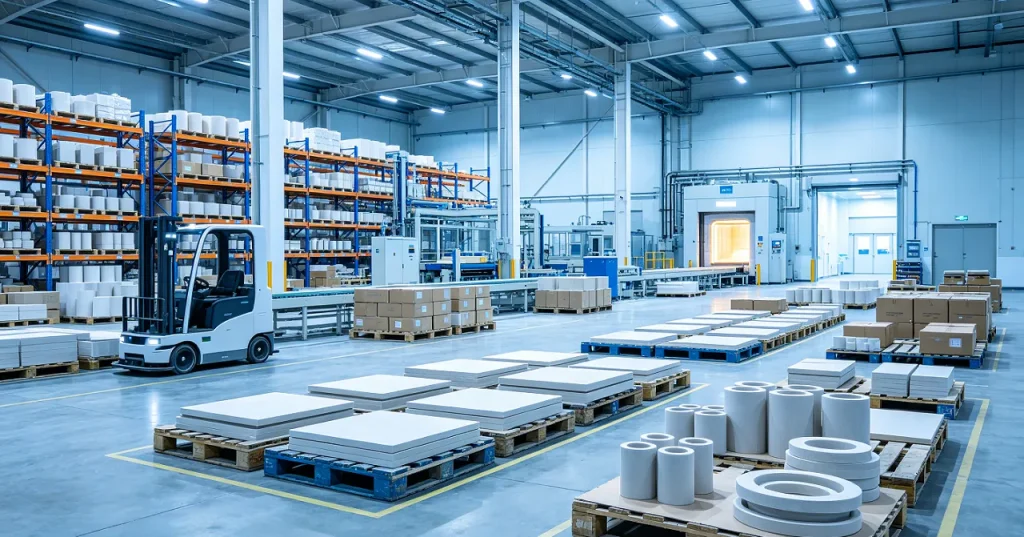

Luoyang JianXun Tech Co., Ltd. specializes in manufacturing advanced ceramic materials and customized ceramic components, including Silicon Nitride ceramics, Boron Nitride ceramics, Aluminum Nitride ceramics, Alumina ceramics, and high-performance engineering ceramic parts. We provide reliable ceramic solutions for global customers in precision machinery, semiconductor, energy, metallurgy, and high-temperature industrial applications.

Shipment Terms

Shipment Terms: By air, by sea, by express, or according to customer request.

Payment Terms

Payment Terms: T/T, PayPal, Credit Card, Western Union, etc.

Storage Conditions

Silicon Nitride Ceramic Rods should be stored in a clean, dry environment away from moisture, dust, and strong impact. Proper storage and careful handling help maintain surface quality and dimensional accuracy.

FAQ About Silicon Nitride Ceramic Rod

1. What is a Silicon Nitride Ceramic Rod?

Silicon Nitride Ceramic Rod is a high-performance engineering ceramic component made from Si₃N₄ material. It is widely used in applications requiring high strength, wear resistance, corrosion resistance, and high-temperature performance.

2. What are the advantages of Si3N4 Ceramic Rod compared with metal rods?

Si3N4 Ceramic Rod offers higher hardness, better wear resistance, lower thermal expansion, and excellent corrosion resistance compared with many traditional metal materials, making it suitable for harsh industrial environments.

3. Can Silicon Nitride Ceramic Rod be used in oilfield equipment?

Yes. Silicon Nitride Ceramic Rod for oilfield equipment is suitable for high-pressure and high-temperature environments due to its excellent mechanical strength, wear resistance, and chemical stability.

4. What is the maximum operating temperature of Silicon Nitride Ceramic Rod?

The maximum service temperature of this High Strength Silicon Nitride Ceramic Rod can reach 1200°C, depending on the working environment and application conditions.

5. Why is silicon nitride suitable for high pressure water cutting equipment?

Silicon nitride ceramic has excellent hardness, wear resistance, and mechanical strength, allowing it to withstand high-pressure water flow and abrasive conditions in water cutting systems.

6. Can Luoyang JianXun Tech Co., Ltd. customize Silicon Nitride Ceramic Rods?

Yes. Luoyang JianXun Tech Co., Ltd. provides customized Silicon Nitride Ceramic Rods according to customer drawings, including different diameters, lengths, tolerances, and surface requirements.
