High Purity Boron Nitride Ceramic Setter Plate
PRODUCT PARAMETERS
Description

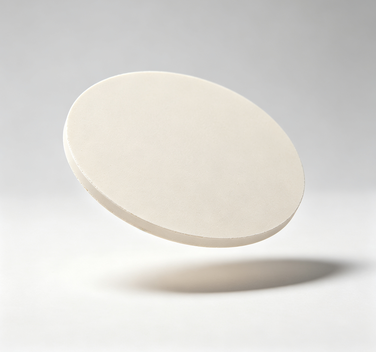

High Purity Boron Nitride Ceramic Setter Plate, also known as BN Ceramic Setter Plate, is an advanced high-temperature ceramic support material designed for precision sintering processes. Manufactured from high-quality hexagonal boron nitride (h-BN), this Boron Nitride Ceramic Plate offers excellent thermal shock resistance, chemical stability, electrical insulation, and non-wetting properties.
With a density of 2.29 g/cm³ and bending strength of 50-100 MPa, the Boron Nitride Setter Plate provides reliable mechanical support while maintaining stable performance during repeated high-temperature heating cycles. Its excellent non-reactive characteristics help prevent contamination and adhesion between the setter plate and processed materials.
Compared with conventional ceramic setter materials, High Purity Boron Nitride Ceramic Plates provide superior protection for sensitive components during high-temperature processing. They are widely used in semiconductor chip sintering, electronic ceramic sintering, new material research, advanced ceramic processing, and laboratory high-temperature experiments.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | High Purity Boron Nitride Ceramic Setter Plate |
| Material | Hexagonal Boron Nitride (h-BN) Ceramic |
| Product Type | BN Ceramic Setter Plate / Boron Nitride Ceramic Plate |
| Density | 2.29 g/cm³ |
| Bending Strength | 50-100 MPa |
| Maximum Service Temperature | Up to 1800°C (Protective Atmosphere) |
| Thermal Shock Resistance | Excellent |
| Thermal Expansion | Low Thermal Expansion Coefficient |
| Electrical Property | Excellent Electrical Insulation |
| Chemical Stability | Excellent Chemical Resistance |
| Surface Feature | Smooth, Non-Wetting Surface |
| Machining Capability | Cutting, Grinding, CNC Machining |
| Shape Available | Plate, Sheet, Customized Shapes |
| Application | Semiconductor Sintering, Electronic Ceramic Sintering, New Material Research |
Product Advantages of Boron Nitride Ceramic Setter Plate
1. Maintains High Purity During Semiconductor Processing
The Boron Nitride Ceramic Plate for Semiconductor Sintering provides a clean and stable processing platform. Its excellent chemical inertness reduces unwanted reactions between the support plate and semiconductor materials. This helps improve product consistency and manufacturing quality.
2. Reduces Contamination in Electronic Ceramic Production
Electronic ceramic manufacturing requires strict control of impurities. The high purity BN material minimizes contamination risks during heating processes. It is suitable for high-value ceramic components and precision applications.
3. Extends Service Life Under Thermal Cycling
The excellent thermal shock resistance of the BN Ceramic Setter Plate allows it to operate reliably under repeated temperature changes. It reduces cracking and deformation problems. This improves equipment efficiency and lowers replacement costs.
4. Improves Sintering Process Efficiency
The non-stick surface of the Boron Nitride Setter Plate allows easier removal of finished products after sintering. It reduces material loss caused by sticking or bonding. This helps optimize production processes.
5. Excellent Electrical Insulation Performance
Boron Nitride ceramic provides excellent electrical insulation properties while maintaining high temperature stability. It is suitable for electronic component manufacturing environments requiring both thermal resistance and insulation performance.
6. Flexible Solution for Different Industries
The Custom Boron Nitride Ceramic Setter Plate can be manufactured in different sizes and structures according to customer requirements. It supports both laboratory testing and industrial mass production needs.

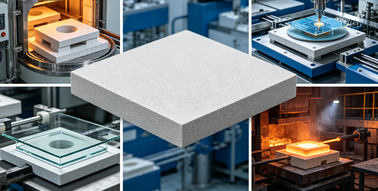

Typical Applications of Boron Nitride Ceramic Setter Plate
1. Semiconductor Chip Sintering
Boron Nitride Ceramic Setter Plate for Semiconductor Sintering is widely used as a support platform during semiconductor thermal processing. Its high purity and low contamination characteristics protect sensitive semiconductor materials. It helps maintain stable processing conditions during high-temperature treatment.
2. Electronic Ceramic Sintering
BN ceramic setter plates are commonly used in electronic ceramic manufacturing, including ceramic substrates and insulating components. The excellent thermal stability ensures consistent heating performance. It helps improve the quality of finished ceramic products.
3. New Material Research and Development
The High Temperature Boron Nitride Ceramic Plate is suitable for laboratory experiments and advanced material research. Its chemical stability allows researchers to process various materials under controlled conditions. It is widely used in the development of new ceramics and composite materials.
4. Advanced Ceramic Manufacturing
Boron Nitride setter plates provide reliable support during advanced ceramic firing processes. The non-reactive surface prevents unwanted bonding between products and support plates. This improves manufacturing accuracy and production efficiency.
5. High Temperature Furnace Applications
BN Ceramic Setter Plates are used inside high-temperature furnaces as support components. They maintain stable performance in extreme thermal environments. They are suitable for industrial furnaces and laboratory heating systems.

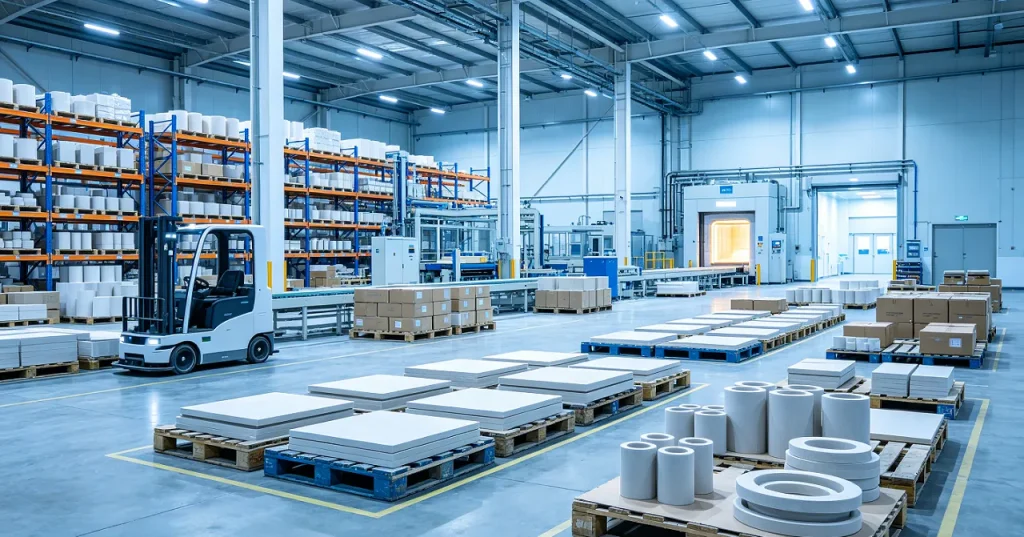

Company Profile
Luoyang JianXun Tech Co., Ltd. specialize in manufacturing advanced ceramic materials and customized ceramic components, including Boron Nitride Ceramic Setter Plates, BN Ceramic Plates, Aluminum Nitride Ceramics, and Alumina Ceramic Products.
With professional production technology and strict quality control, we provide reliable ceramic solutions for semiconductor, electronics, new materials, and high-temperature industrial applications.
Shipment
Shipment Terms: By air, by sea, by express, or according to customer request.
Payment Terms
Payment Terms: T/T, PayPal, Credit Card, Western Union, etc.
Storage Conditions
Boron Nitride Ceramic Setter Plates should be stored in a clean, dry, and well-ventilated environment. Avoid moisture, oil contamination, and strong mechanical impact during storage. Proper storage helps maintain the surface quality and performance of the ceramic products before use.
FAQ About Boron Nitride Ceramic Setter Plate
1. What is a Boron Nitride Ceramic Setter Plate?
A Boron Nitride Ceramic Setter Plate is a high-temperature ceramic support plate made from hexagonal boron nitride (h-BN). It is mainly used to hold and support materials during high-temperature sintering processes. Due to its excellent thermal shock resistance, chemical stability, and non-wetting properties, the BN Ceramic Setter Plate is widely used in semiconductor sintering, electronic ceramic manufacturing, and advanced material processing applications.
2. Why is Boron Nitride used as a setter plate material?
Boron Nitride is an ideal material for setter plates because it combines high-temperature stability, excellent chemical inertness, low thermal expansion, and electrical insulation properties. Compared with traditional ceramic support materials, Boron Nitride Ceramic Setter Plates reduce material adhesion and contamination during sintering processes, helping improve product quality and production efficiency.
3. What are the main applications of BN Ceramic Setter Plates?
BN Ceramic Setter Plates are commonly used in:Semiconductor chip sintering, Electronic ceramic sintering, Aluminum nitride (AlN) and silicon nitride (Si₃N₄) substrate processing, Advanced ceramic manufacturing, New material research and laboratory high-temperature experiments. They provide a stable support platform during high-temperature treatment while minimizing contamination risks.
4. What temperature can Boron Nitride Ceramic Setter Plate withstand?
The working temperature of a High Temperature Boron Nitride Ceramic Setter Plate depends on the atmosphere and material grade. Generally, BN ceramic can maintain excellent performance in inert atmospheres and vacuum environments at very high temperatures. Different grades are available for different furnace conditions and processing requirements.
5. Does Boron Nitride Setter Plate react with semiconductor materials?
No. One of the major advantages of Boron Nitride Setter Plate is its excellent chemical inertness. It has low reactivity with many semiconductor materials, ceramics, metals, and molten materials. This helps prevent unwanted reactions and reduces contamination during high-temperature sintering.
