99% Al2O3 Industrial Alumina Ceramic Ring

Alumina Ceramic Rings are precision-engineered ceramic components manufactured from high-performance alumina (Al₂O₃) ceramic materials. Combining excellent mechanical strength, high hardness, electrical insulation, thermal stability, and chemical resistance, alumina ceramic rings are designed for demanding industrial applications where conventional metal or polymer components may not provide sufficient durability.
With a compressive strength of up to 2000 MPa, Vickers hardness of HV1500–1700, a low thermal expansion coefficient of 7.6 × 10⁻⁶/℃, and thermal conductivity of 27.5 W/(m·K), alumina ceramic rings offer a balanced combination of mechanical, thermal, electrical, and chemical properties. These characteristics make them suitable for components that must maintain dimensional stability and reliable performance under continuous mechanical stress, temperature changes, and exposure to corrosive media.
Alumina ceramic rings are widely used as insulating rings, sealing-related components, wear-resistant rings, protective rings, and precision ceramic parts. They are particularly valuable in chemical processing equipment, electrical and electronic systems, medical equipment, laboratory instruments, and other industrial applications requiring electrical insulation and high material stability.

Al2O3 Industrial Alumina Ceramic Ring

Technical Specifications

Parameter	Specification
Product	Alumina Ceramic Ring
Material	Alumina (Al₂O₃) Ceramic
Compressive Strength	Up to 2000 MPa
Vickers Hardness	HV1500–1700
Thermal Expansion Coefficient	7.6 × 10⁻⁶/℃
Thermal Conductivity	27.5 W/(m·K)
Electrical Property	Excellent Electrical Insulation
Chemical Resistance	Excellent
Wear Resistance	Excellent
Dimensional Stability	Excellent
Shape	Ring / Annular Ceramic Component
Customization	Size, dimensions, tolerances and machining available upon request
Typical Applications	Chemical Equipment, Electrical Insulation, Medical Equipment, Precision Industrial Components

Note: Specific material composition, dimensions, tolerances, surface finish, and mechanical properties can be customized according to the customer’s application and technical requirements.

99.5% Al2O3 Industrial Alumina Ceramic Ring

Product Advantages

1. Excellent Mechanical Performance

Alumina ceramic rings offer high compressive strength and hardness, allowing them to withstand demanding mechanical conditions. Their rigid ceramic structure provides reliable dimensional stability during long-term operation. This makes them suitable for precision industrial components exposed to mechanical stress.

2. Superior Wear Resistance

The high Vickers hardness of HV1500–1700 provides excellent resistance to abrasion and surface wear. Alumina ceramic rings are suitable for applications involving friction, repeated contact, and particle exposure. Their wear resistance can help reduce component replacement frequency and maintenance requirements.

3. Excellent Electrical Insulation

Alumina is a widely used engineering ceramic for electrical insulation applications. Ceramic rings can electrically isolate components while maintaining their physical connection and structural integrity. This makes them particularly useful in electrical, electronic, instrumentation, and industrial equipment.

4. Thermal Stability and Heat Management

The relatively low thermal expansion coefficient helps alumina ceramic rings maintain dimensional stability during temperature fluctuations. With a thermal conductivity of 27.5 W/(m·K), the material can also provide useful heat-transfer performance in suitable applications. These properties make alumina ceramic components suitable for industrial systems operating under changing thermal conditions.

5. Chemical and Corrosion Resistance

Alumina ceramic has excellent resistance to many acids, alkalis, and chemical media. This allows ceramic rings to perform reliably in demanding chemical processing environments where conventional materials may experience corrosion or degradation. They are therefore suitable for chemical equipment and components exposed to aggressive operating conditions.

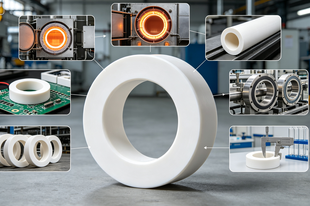

Applications of Al2O3 Industrial Alumina Ceramic Ring

Applications

1. Chemical Tower Equipment

Alumina ceramic rings are commonly used as important components in chemical tower equipment for processing chemical media. Their chemical resistance, mechanical strength, and dimensional stability allow them to operate reliably in demanding process environments. They can be used in selected tower components, insulating structures, protective parts, and other ceramic components according to equipment design requirements.

2. Electrical Insulation Components

Alumina ceramic rings are used in applications where electrical isolation is required while maintaining a physical connection between components. The ceramic ring can act as an insulating interface between conductive parts while providing mechanical support. This makes it useful for electrical equipment, electronic assemblies, industrial instruments, and precision machinery.

3. Medical Equipment

Alumina ceramic rings can be used as precision components in medical equipment where insulation, wear resistance, or corrosion resistance is required. Their stable ceramic properties make them suitable for selected precision assemblies and components exposed to demanding operating conditions. Custom dimensions can be manufactured to meet specific equipment requirements.

4. Industrial Sealing and Protective Components

Alumina ceramic rings can be incorporated into selected sealing-related and protective structures. Their hardness and chemical stability help protect critical interfaces from wear and environmental exposure. They are suitable for industrial equipment requiring durable ceramic components with precise dimensions.

5. Precision Machinery and Wear-Resistant Systems

Due to their high hardness and wear resistance, alumina ceramic rings are suitable for precision machinery and industrial systems where component wear must be minimized. They can be used as insulating, spacing, positioning, or wear-resistant components depending on the equipment design. Custom machining allows the ring geometry to be adapted to specific assembly requirements.

6. Electronic and Instrumentation Equipment

Alumina ceramic rings provide a combination of electrical insulation, mechanical strength, and thermal stability. They can be used in electronic components, sensors, instrumentation systems, and other precision assemblies. Their stable performance makes them suitable for applications where reliable insulation and dimensional accuracy are important.

Company Profile

Luoyang JianXun Tech Co., Ltd. is a professional supplier of advanced materials and industrial products, serving customers across global markets. The company focuses on providing high-quality advanced ceramic materials, refractory materials, nanomaterials, and other high-performance industrial products.
With a focus on industrial applications and B2B customer requirements, JianXun provides material solutions for chemical processing, electronics, medical equipment, machinery, energy, metallurgy, and other industrial sectors.
For alumina ceramic products, we can support customers with different material grades, product dimensions, shapes, and customized specifications according to application requirements. Our service covers product supply, technical communication, customized production, packaging, and international shipment.

Payment Terms: T/T, PayPal, Credit Card, Western Union, etc.
Shipment Terms: By air, by sea, by express, or according to customer request.

Storage Conditions：Store alumina ceramic rings in a dry, clean, and well-ventilated environment, away from moisture, direct water exposure, and corrosive substances. Keep the products properly packaged during storage and transportation to prevent contamination, impact, and surface damage.

FAQ of Alumina Ceramic Rings

1. Why should I choose alumina ceramic rings instead of metal rings?

Alumina ceramic rings offer a combination of high hardness, wear resistance, electrical insulation, thermal stability, and chemical resistance that many conventional metal materials cannot provide simultaneously. They are particularly suitable when electrical isolation or corrosion resistance is a critical requirement. The appropriate material choice ultimately depends on the customer’s operating temperature, load, chemical environment, and assembly conditions.

2. Can you manufacture alumina ceramic rings according to our drawings?

Yes. Custom alumina ceramic rings can be produced according to customer drawings, dimensions, tolerances, and application requirements. Customers can provide technical drawings, dimensions, samples, or specifications for evaluation. We can discuss suitable material grades and manufacturing requirements based on the intended application.

3. What specifications should I provide when requesting a quotation?

For an accurate quotation, buyers are recommended to provide the inner diameter, outer diameter, thickness, quantity, dimensional tolerances, material requirements, surface finish, and application conditions. If the ring operates under high temperature, pressure, chemical exposure, or mechanical load, these conditions should also be specified. Providing a drawing or technical specification can significantly speed up the quotation process.

4. Are alumina ceramic rings suitable for high-temperature and corrosive environments?

Yes. Alumina ceramic offers excellent thermal stability and resistance to many chemical media, making it suitable for demanding industrial environments. The material’s thermal expansion coefficient of 7.6 × 10⁻⁶/℃ also helps maintain dimensional stability during temperature changes. However, the final suitability should be evaluated according to the specific chemical medium, temperature, pressure, and operating conditions.

5. What is the MOQ for customized alumina ceramic rings?

The MOQ depends on the product size, material grade, manufacturing process, customization requirements, and order quantity. For standard specifications, smaller quantities may be available depending on stock and production arrangements. For customized rings, buyers can send their drawings and required quantity first, and we can provide a suitable quotation and production solution accordingly.
